Gas Analyser

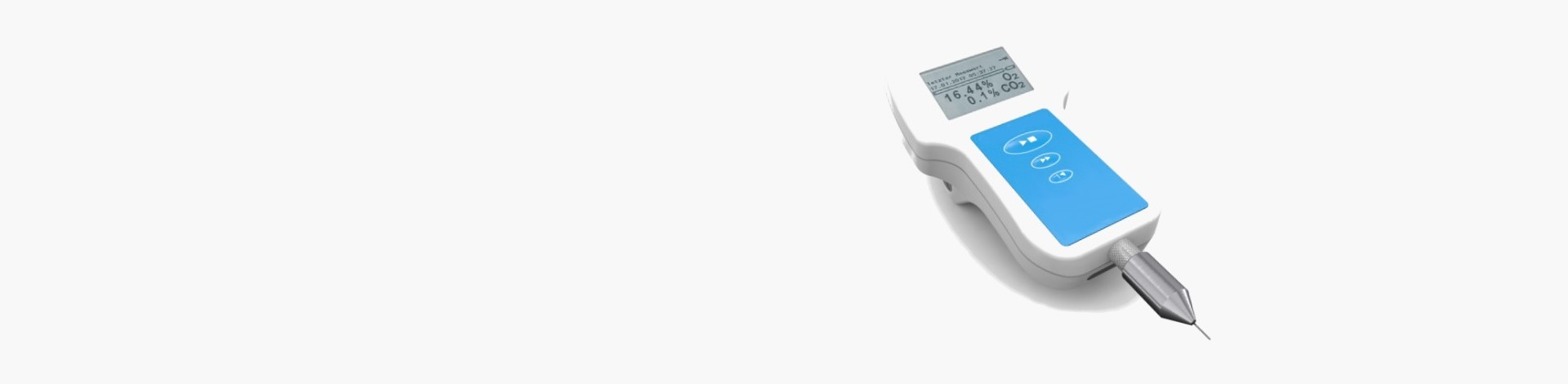

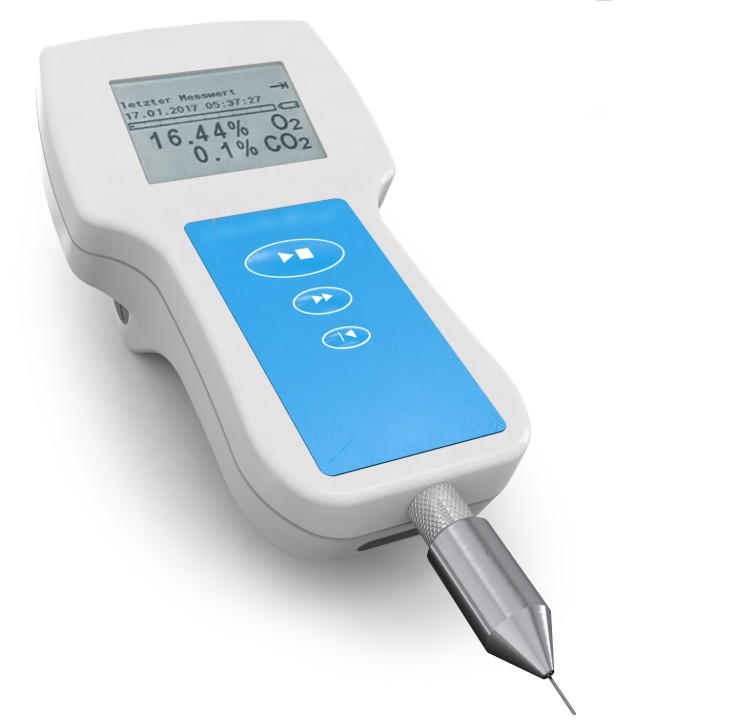

Cordless hand held oxygen or combined oxygen and carbon dioxide analyzer for verifying modified atmosphere (MAP) in food packs. The ideal instrument for portable, fast and accurate sample testing.
A cost effective mobile alternative to tabletop / fixed analyzers.
Ensure that the quality of packaged product is maintained (HACCP), guaranteeing continued customer satisfaction.
The ideal instrument for sample tests with a minimum sample gas requirement, allowing the smallest of modified atmosphere packages (MAP) to be tested.
Description:
O2- and O2/CO2- headspace gas analyser for MAP-packages, standard version
- Ideal for quality control
- Fast and precise sample headspace testing
- Minimum sample gas requirement
- O2 value is displayed in 0,01% steps
- Long lifetime of O2 sensor (approx. 2 years, depending on use)
- Portable and rechargeable
- Can be used as a tabletop unit by simply inserting a hose
Benefits:
- Minimum sample gas requirement for smallest packs
- Cordless operation using rechargeable batteries
- Simple one-handed operation
- Easy to clean
- Large illuminated graphic display
- Measurement alternatively also by hose
- Multilingual menu guide: German, English, French, Italian, Dutch, Swedish, Finnish, Spanish, Polish, Japanese and Russian
- Integrated needle cover to protect the user
- Long lifetime of O2 sensor (approx. 2 years)
- Low maintenance costs
Complete in carrying case
- Charging device and main adapter
- 2 spare needles
- 2 spare filters
- Set of 100 rubber seals
Case dimensions (HxWxD): approx. 325x385x115 mm (12.79×15.16×4.53 inch),
Case weight: approx. 1.7 kg
Description:
O2 and CO2 gas analyser for headspace of MAP-packages, premium version
Together with the exclusive OBCC-Software the measured results can be documented providing complete traceability (HACCP). Provide your customer with the results ensuring that your product has the best possible pack quality
- Ideal for quality control in modified atmosphere packaging
- Fast and precise sample headspace testing
- Also measures packaging pressure
- Minimum sample gas requirement (2 ml)
- Oxygen (O2) value is displayed in 0,01% steps
- Long lifetime of O2 sensor (approx. 2 years, depending on use)
- High capacity data storage, with export port
- Optional: Bluetooth, barcode reader etc.
- Low follow-up costs: easy sensor replacement and calibration by user
- Can be used as a tabletop unit by simply inserting a hose
Benefits:
- Minimum sample gas requirement for smallest packs with small headspace
- Integrated data log of the last 500 measurements
- Product administration up to 25 users, 100 product names and 50 packaging lines
- Increased memory capacity and simplified data export of measurement results by microSD card
- Alternatively a pressure indication can be selected
- Cordless operation using rechargeable batteries
- Data transfer and charge of batteries via USB port
- Faster workflow enabled by an optional integrated bar code scanner for product data sample flow control with warning in case of blocked needle
- Upgraded simple one-handed operation
- Measurement alternatively also by hose
- Easy to clean
- Large illuminated graphic display
- Multilingual menu guide
- Integrated needle cover to protect the needle and user
- Long lifetime of O2 sensor (approx. 2 years)
- Low maintenance costs
Complete in carrying case:
- Charging device, microSD card
- Link to OBCC software (demo version)
- 2 spare needles
- 2 spare filters
- Set of 100 rubber seals
Case dimensions (HxWxD): approx. 325x385x115 mm (12.79×15.16×4.53 inch),
Case weight: approx. 1.7 kg
Options:
- Hose with Luer-Lok connection for stationary measurement
- Data cable
- Integrated Barcode-Scanner
- Bluetooth (e.g. for separate printer)
Modified atmospheres – Big effects, small efforts
The main application of MAP Modified Atmosphere Packaging is use in connection with vacuum, thermoforming, chamber, form, fill and seal packaging machines. The principle of MAP is to replace the normal atmosphere in the pack by a specified gas mixture. The main components of these precise gas mixtures are oxygen, nitrogen and carbon dioxide.
To keep the healthy freshness of perishable goods is the major task of food processing applications today. Whether vegetable, fruit, meat or fish, the processing and packaging of perishable goods without modified atmospheres is presently unimaginable.
Modified Atmosphere Packaging (MAP) provides a longer shelf life and an improved appearance of freshness regarding taste, colour and form. The modified atmosphere in the food package counteracts the growth of microbiological organisms and bio-chemical reactions and the consequent spoilage of the goods.
The use of MAP is a fundamental part of a precise quality assurance as well as a reliable and cost-efficient alternative to refrigeration or preservatives.
Standard and Custom-made containers that fit the right machine. Our designers can tailor the right container for your products.
